SINGLE FACE PAPER CORRUGATING MACHINE

SFV-931B

Verticle Type Single Face Paper Corrugating Machine (Bearing Mounted)

For Manufacturing 2 Ply Corrugated Board

Size (in inch) Power (H.P) Heating Load (KW) Max. Output (RFT/Min.)
32 3 19 75
42 3 24 75
45 5 27 75
52 5 30 75
62 7.5 36 75
Required Details

SFV-931BF

Fingerless Vertical Type Single Face Corrugating Machine (Bearing Mounted)

For Manufacturing 2Ply Corrugated Board

Size( in inche) Power (H.P) Heating Load (K.W) Max. Output(RFT/Min.)
32 8 20.5 75
42 10.5 26 75
45 12.5 29.5 75
52 12.5 32.5 75
62 17.5 39 75
Required Details

SFO-930B

OBLIQE TYPE SINGLE FACE FACE PAPER CORRUGATING MACHINE :

For Manufacturing 2 Ply Corrugated Board

Size (in inch) Power (H.P) Heating Load (KW) Max. Output (RFT/Min.)
42 8 32 120
45 8 36 120
52 10.5 40 120
62 10.5 47 120
Required Details

SFO-930BF

FINGERLESS OBLIQUE TYPE SINGLE FACE PAPER CORRUGATING MACHINE (BEARING MOUNTED):

For Manufacturing 2 Ply Corrugated Board

Size (in inch) Power (H.P) Heating Load (KW) Max. Output (RFT/Min.)
42 14.5 31.5 115
45 14.5 34.5 115
52 19.5 40.5 115
55 19.5 43.5 115
62 27 47.5 115
65 27 50.5 115
72 37 53.5 115
Required Details

SFO-921FP

FINGERLESS SINGLE FACE HIGH SPEED PAPER CORRUGATING MACHINE (PNEUMATIC MODEL):

Size (in inch) Power (H.P) Heating Load (KW) Max. Output (RFT/Min.)
42 14.5 45 150
45 14.5 49 150
52 19.5 57 150
62 27 66 150
Required Details

SFD-930 BF

FINGERLESS SINGLE FACE PAPER CORRUGATING MACHINE WITH TWIN FLUTE

For Manufacturing 2 Ply Paper Corrugated Board

Size (in inch) Heating Load (KW) Motor (H.P) Speed (on Steam) Heating (Rft/Min.) Speed (on electric) Heating/Gas (Rft/Min.)
42 38 18 150 125
45 42 21.5 150 125
52 47 24 150 125
62 55 27 150 125
Required Details

SFO-929F

FINGERLESS SINGLE FACE HIGH SPEED PAPER CORRUGATING MACHINE (PNEUMATIC MODEL)

For Manufacturing 2 Ply Paper Corrugated Board

Size (in inch) Heating Load (KW) Motor (H.P) Speed (on Steam) Heating (Rft/Min.) Speed (on electric) Heating/Gas (Rft/Min.)
42 54 18.5 210 160
45 57 18.5 210 160
52 64 28.5 210 160
62 74 31 210 160
Required Details

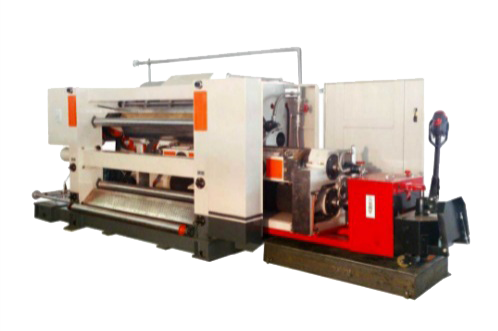

CASSETTE TYPE SINGLE FACER

Design speed: 200m/min

Width: 1800mm/2000mm/2200mm/2500mm

Quick Roll change, 10 minutes, in order to replace the trolley trailer containing Corrugated, Corrugated to the entire group of motor drive, into the machine, the machine is fixed on the base, with just a few button switch can be completed quickly and easily Corrugated replacement.

Required Details
