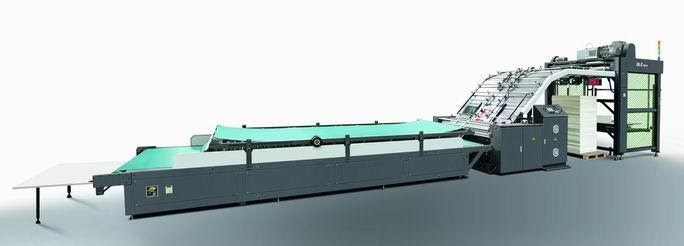

FMZ Series Automatic Flute Laminating Machine
| Model |
FMZ-1300 |
FMZ-1480 |
FMZ-1650 |
| Max sheet size |
1300×1300mm |
1300×1300mm |
1300×1300mm |
| Min sheet size |
400×400mm |
400×400mm |
400×400mm |
| Power consumption |
19kw |
25kw |
26kw |
| Weight of top paperboard |
200-450gsm |
200-450gsm |
200-450gsm |
| Laminating tolerance |
±1.5 |
±1.5 |
±1.5 |
| Max speed |
7000sph |
7000sph |
7000sph |
| Weight |
6.3t |
6.6t |
6.8t |
| Overall Dimensions |
15400×2150×2960mm |
16100×2350×2960mm |
16770×2500×2960mm |
Required Details

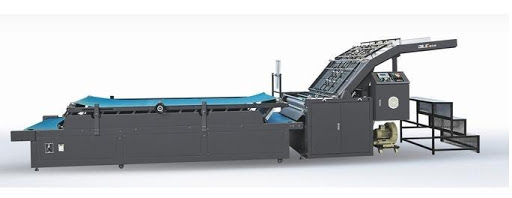

FMB-G Series Semi-Automatic Flute Laminating Machine
| Model |
FMB-1300-G |
FMB-1450-G |
FMB-1650-G |
| Max. Sheet size |
1300x1100mm |
1450x1100mm |
1650x1300mm |
| Min. Sheet size |
350x400mm |
350x400mm |
350x400mm |
| Power consumption |
9kw |
9kw |
13kw |
| Speed |
0-108m/min |
0-108m/min |
0-90m/min |
| Weight |
3.1t |
3.5t |
5.3t |
| Overall Dimension |
9000x1950x1900mm |
9000x2150x1900mm |
9200x2500x1900mm |
